DN-TAP-M6X1.0

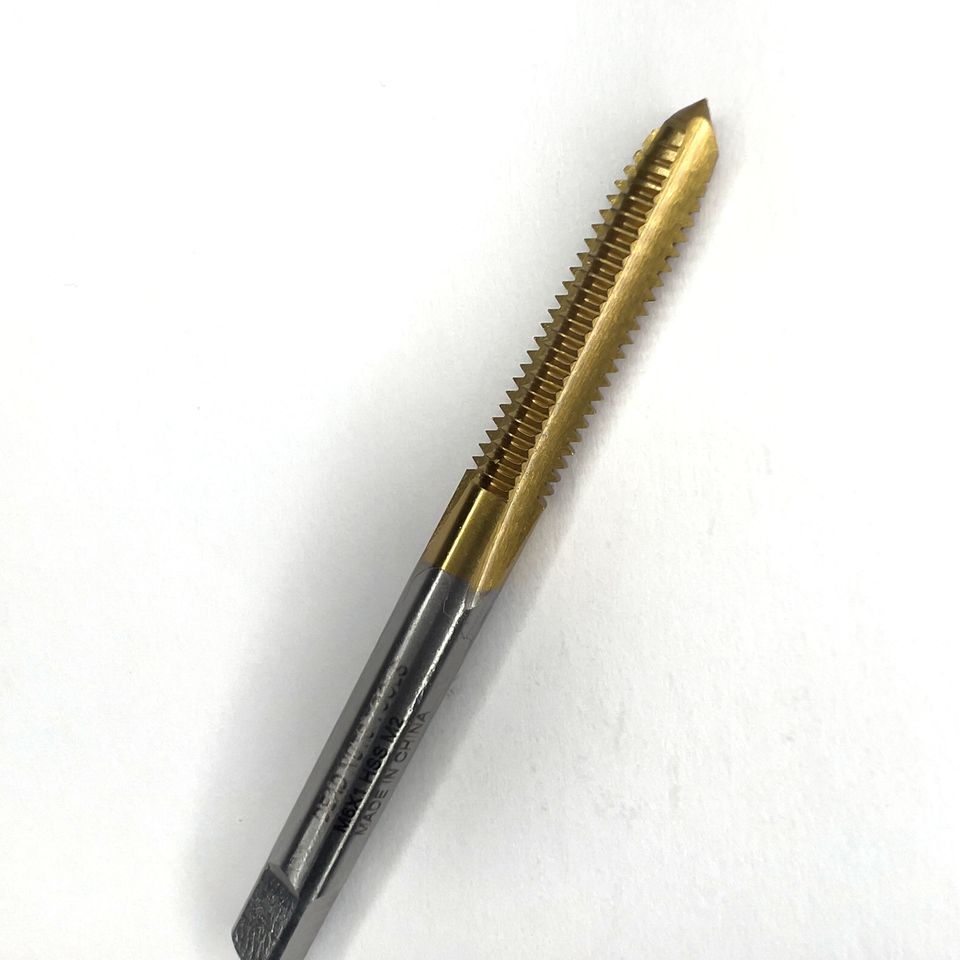

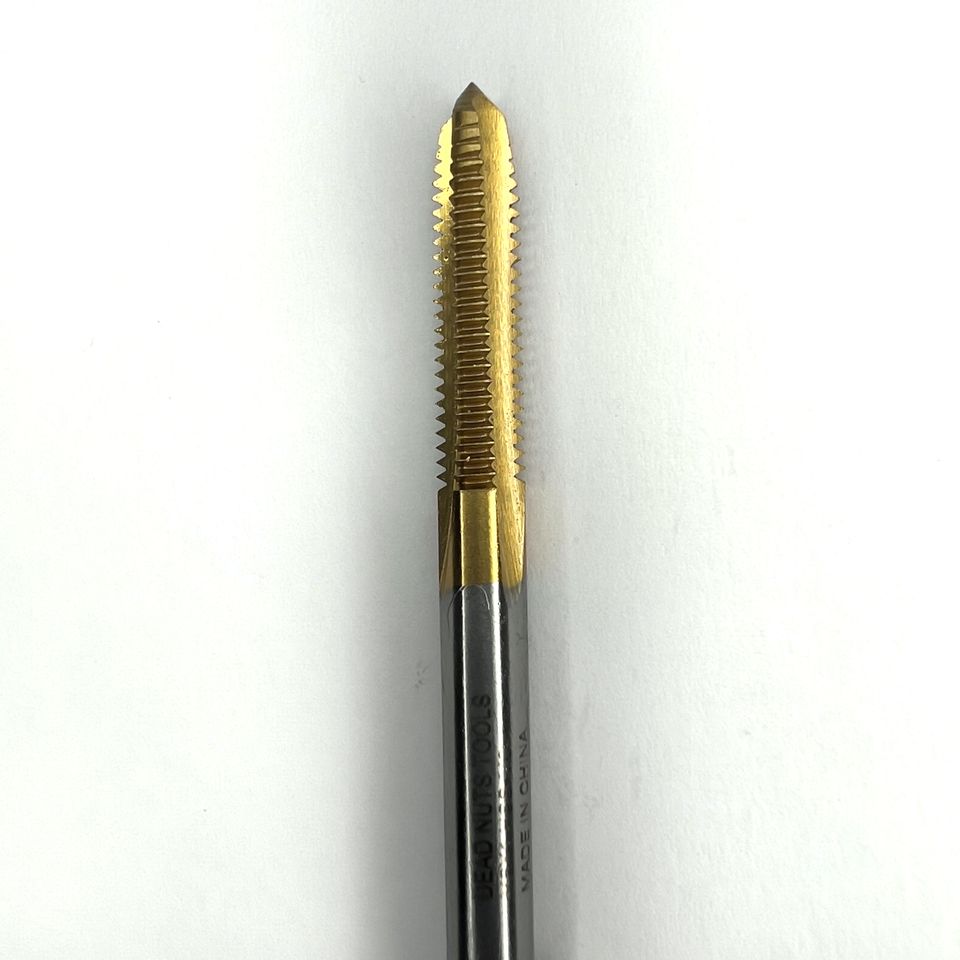

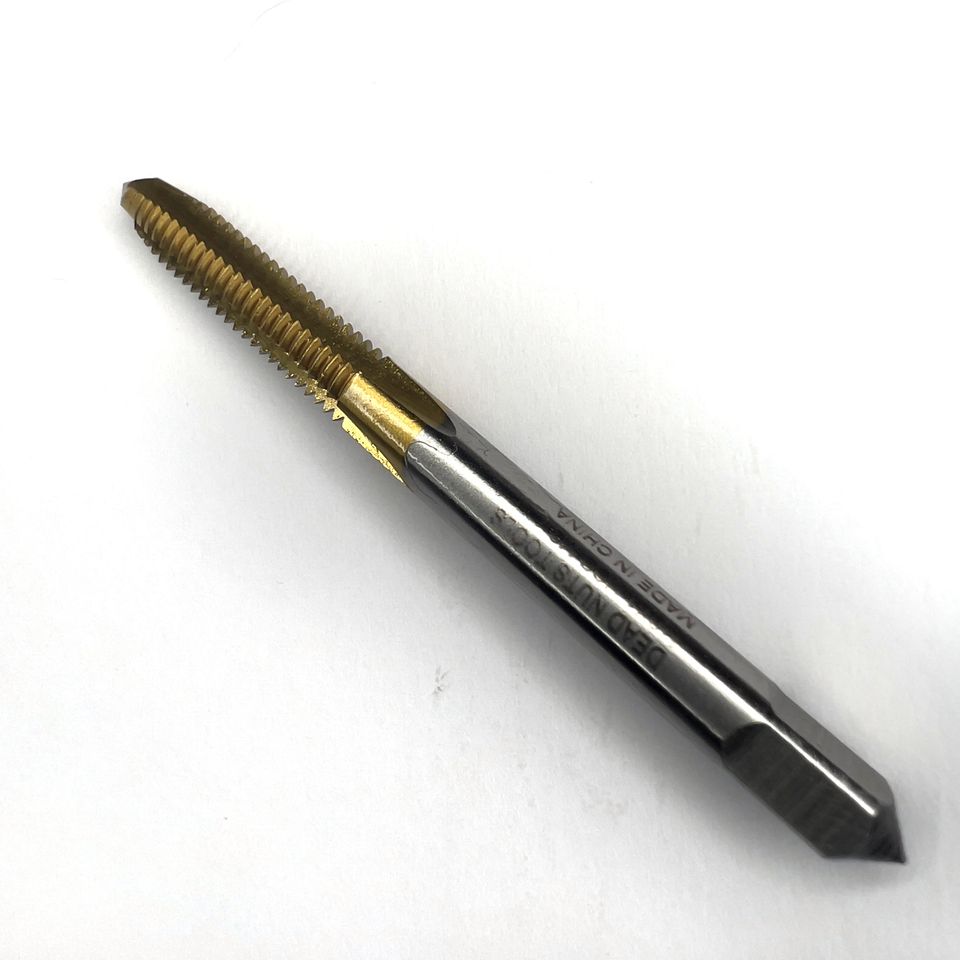

Small Talk — M6×1.0 Tap
Little threads. Big opinions.
- 6 mm diameter, 1.0 mm pitch
- ISO coarse pitch — a bolt marked plain M6 is this thread
- High speed steel, M2 grade — 65 HRC hardened
- Holds its cutting edge to about 600 °C; plain carbon steel softens from 200 °C
- Titanium nitride coated — about 2,300 HV, three times the hardness of the steel beneath
- Coating 2–5 microns thick
- Tap drill 5.00 mm (75% thread)
